Digital high-precision fully automatic portable ultra-thin anti-burn digital display multimeter

Digital high-precision fully automatic portable ultra-thin anti-burn digital display multimeter

• High Precision Fully Automatic Portable Ultra-thin Multimeter Anti-scalding Digital Display

  A universal measuring device that can measure DC and AC voltage, as well as resistance, capacitance, frequency and temperature.

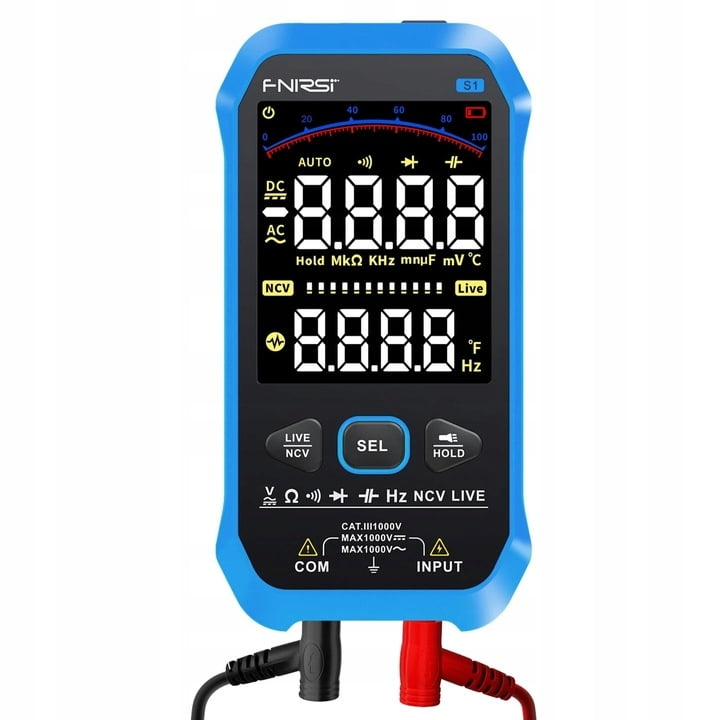

  The Fnirsi S1 multimeter is equipped with an LED tester, circuit continuity test, hold function, as well as automatic switch and LCD backlight, which significantly expands its functions.

  Capable of accurately measuring various electrical parameters and equipped with many useful functions, this multimeter can be used in many fields such as electronics, electrical engineering, diagnosis, maintenance, etc.

  Its housing is made of durable ABS material.

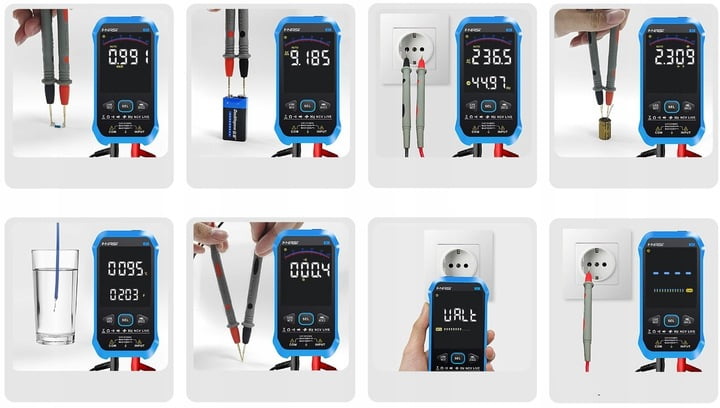

• Multiple measurement functions

  The general purpose Fnirsi S1 multimeter has a variety of functions that make it an extremely useful device for diagnostic work.

  Features:

  Direct voltage measurement (DC)

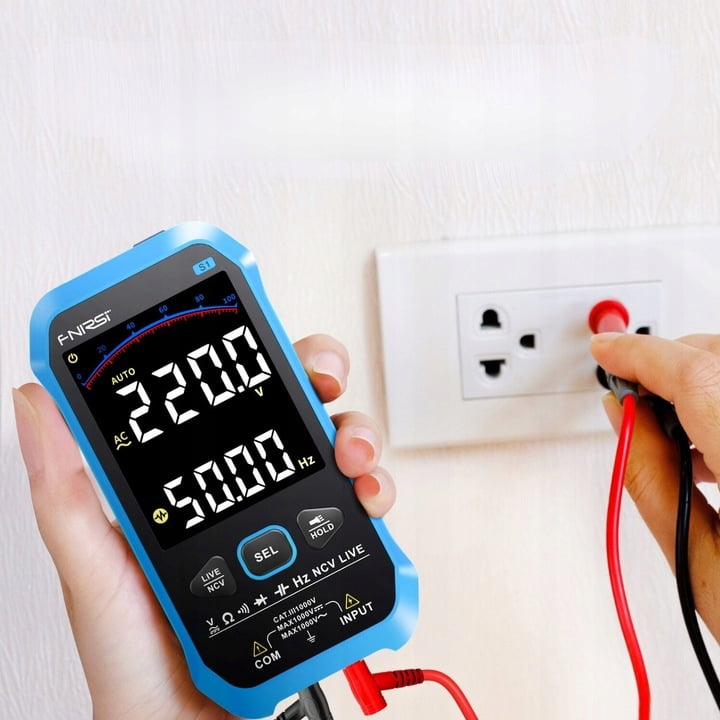

  AC voltage measurement up to 1000 V

  Resistance up to 100M Ω

  Capacitance up to 10 mF

  Frequency up to 10 MHz

  Temperature measurement range: -20℃ to 1000℃

  Circuit continuity test

  Diode test

  Auto power off

  Screen backlight

  Buzzer

  Automatic range change

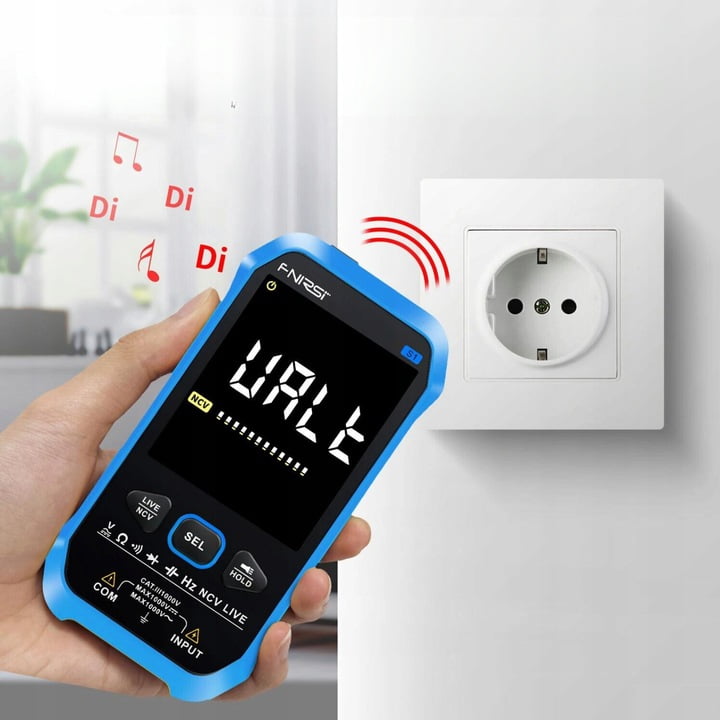

  NCV (Non-Contact Voltage) detection.

  Hold function (holds measurement results)

• Charger

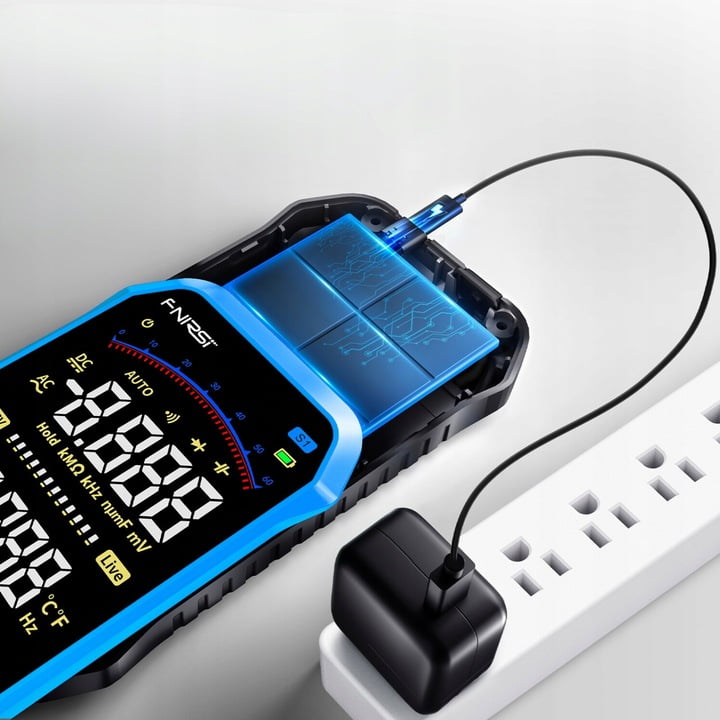

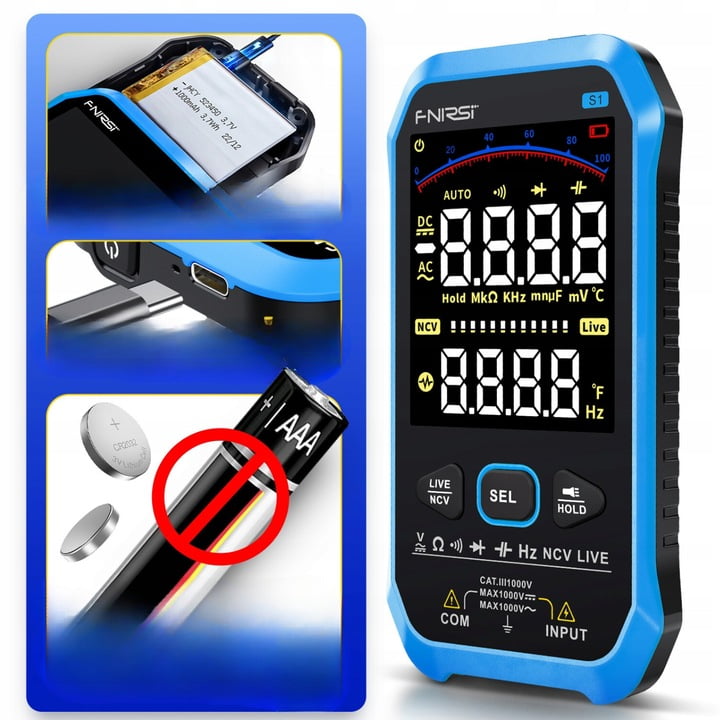

  The S1 universal meter has a built-in 1000mAh lithium battery and does not require an external power supply.
  Use a USB-C cable to charge the battery.

  Brightness (maximum)

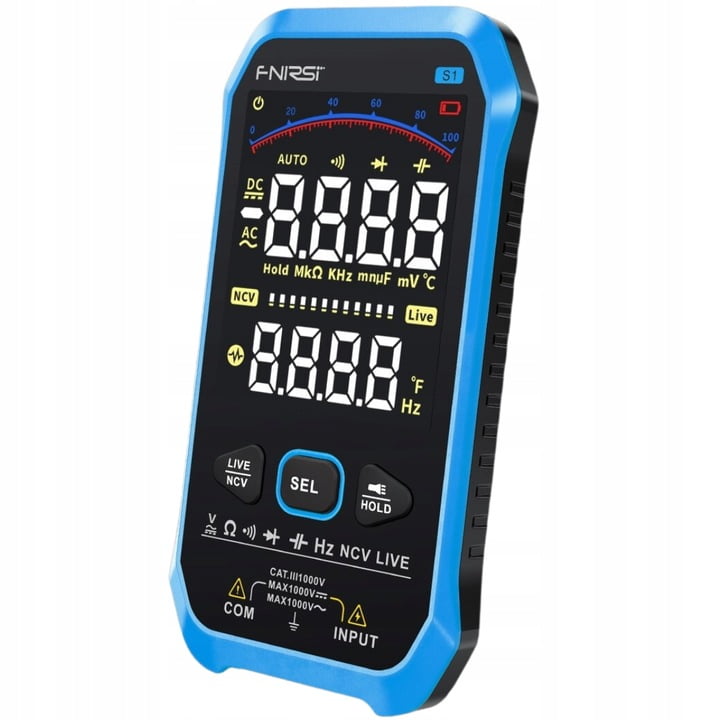

  The Fnirsi S1 looks like a smartphone, mainly because it has a large color LCD screen on which the measurement results can be displayed.

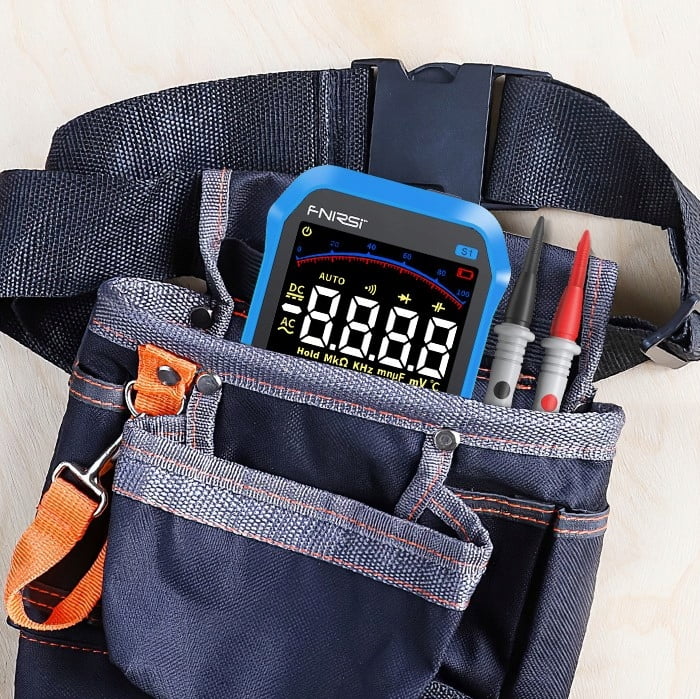

  Compact size
  The multimeter is compact and about the same size as a smartphone, making it very convenient to use. You can carry it with you at all times.

• Mesh underwear
  DC voltage measurement: 10V/100V±(0.8%+3 digits), 1000V±(1.2%+3 digits)
  AC voltage measurement: 10V/100V±(0.8%+3 digits), 1000V±(1.2%+3 digits)
  Resistance measurement: 1kΩ/100kΩ/1MΩ±(0.8%+3 digits), 100MΩ±(1.2%+3 digits)
  Capacitance measurement: 10nF/100nF/1uF/10uF/100uF/1mF/10mF±(4.5%+5 digits)
  Frequency measurement: up to 10 MHz±(0.1%+3 digits)
  Temperature measurement: -20℃ to 1000℃±(2%+5 digits)
  Maximum reading: 9999
  Material: ABS
  Display: LCD screen
  Lithium battery: 1000mAh
  Safety level: CAT III 1000V
  Dimensions: 143 x 75 x 19 mm
  Weight: 135g

• Package Contents:

  1x Multimeter
  Measurement Cable
  1x Thermocouple
  1x USB Type-C Cable
